Min. objednať:1 Piece/Pieces
značka: Vzostupný
produktivita: 1500K
Miesto pôvodu: Shen zhen
certifikát: CE/ROSH/UL/ISO9001

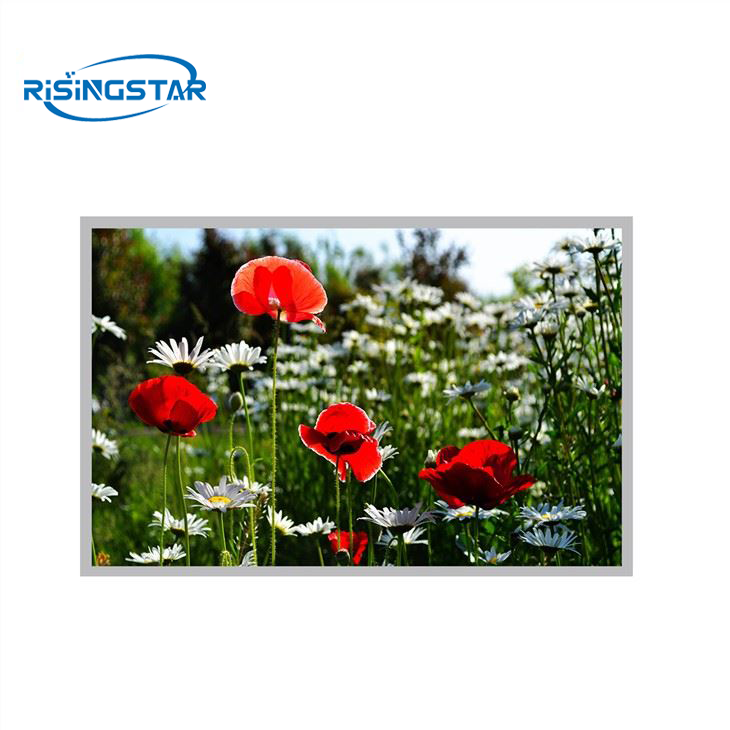

| Panel Brand | RISINGSTAR | Panel Model | RS156XW-NE10 |
| Panel Size | 15.6" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 (WXGA) 100PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 (H×V) | Surface | Antiglare, Hard coating (3H) |
| Outline Size | 363.8 × 215.9 × 17.35 (H×V×D) | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness | 1000nit or customized | Display Mode | TN, Normally White, Transmissive |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M 70% NTSC | Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz | Input Voltage | 5V (Typ.) |
| Weight | 1.25/1.35Kgs (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) , Connector 30 pins |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C | ||
1. Výrobca LCD panelov LCD Panel
2. Profesionálna LCD obrazovka s vysokým jasom, vydrží 110 vysokej teploty
3.Samsung, LG, Beo, Auo, Innolux Cooperative Enterprises
4. poskytnúť vám profesionálne poradenstvo v oblasti outdoorových technológií
Horúce značky: 15,6 palca 1000Nit Outdoor Digital Advertising Obraz , Panel TV LCD , panel LCD, LCD modul, displej s vysokým jasom.
17 ＂1500NIT Outdoor Touch Screen
15,6 palca 1000Nit Outdoor LCD displej
