Model č.: AV121X0M-N10

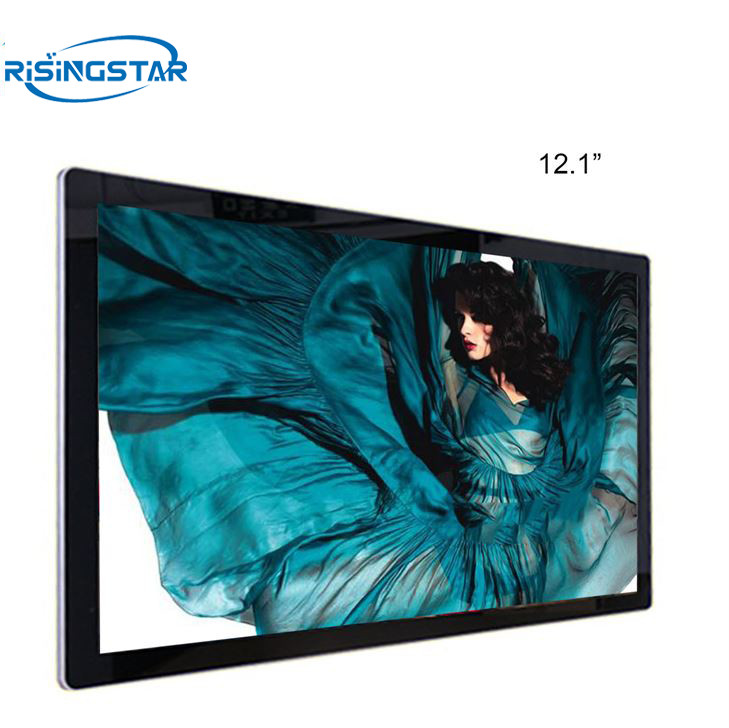

12,1 palca Innolux AV121x0M-N10 Viditeľný jas o slnečnom svetle TFT LCD Panel Sunlight.
12,1 "LCD modul s technológiou A-Si TFT-LCD, vybavený podsvietením, bez podsvietenia, bez dotyku. Jeho typické vlastnosti sú: vysoký jas, biele podsvietenie LED, pruh domény RGB 2. Pracuje na -20 až 85 ° C a je skladovaný pri -30 až 85 ° C. Tento model je vhodný pre priemyselné aplikácie. Podsvietenie Tento produkt používa 8S6p WLED VSTUPNÉ ZDROJ SVETLO SVETLO, ŽIVOSTI SLONTOVÉHO ZDROJU je 30 000 hodín bez podsvietenia.
Model rovnakej veľkosti: RV121X0M-N01
| brand | BOE | Model name | RV121X0M-N01 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 245.76×184.32mm(H×V) | Surface treatment | Clear |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Outline dimension | 260.5×204×9.5mm(H×V×D) |
| Signal interface | LVDS (1 ch, 6-bit),20 pins ,erminal |
|
|
| work environment | Storage temperature: -40 to 80 °C Operation Temperature: -30 to 70 °C |
|
|
| brand | BOE | Model name | AV121X0M-N10 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 245.76×184.32mm(H×V) | Surface treatment |
|
| Open zone | 257.68×187.32mm(H×V) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Outline dimension | 265.5×206.3×13.5mm(H×V×D) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
|
|
| Signal interface | 30 pins LVDS (1 ch, 8-bit),erminal |
|
|
| work environment | Storage temperature: -20 to 85 °C Operation Temperature: -30 to 85 °C |
|
|
