Min. objednať:1 Piece/Pieces
Model č.: G121XGE-L01

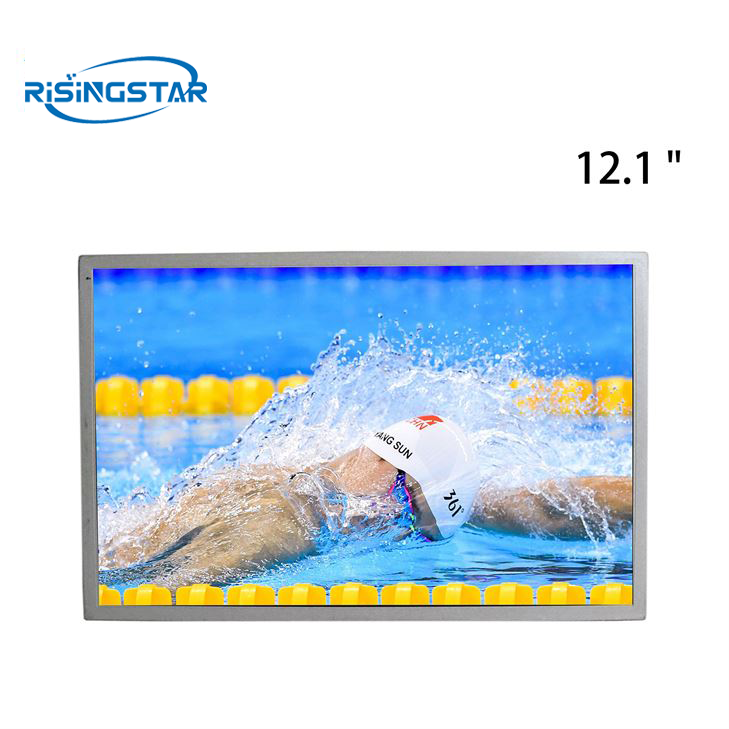

12,1 palca Innolux G121XGE-L01 Viditeľné slnečné svetlo LCD Panel.
| brand | Innolux | Model name | G121XGE-L01 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 768(RGB)×1024, XGA, 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 184.32×245.76(H×V)mm | Surface treatment | Mirror (Haze 0%), Hard coating (3H) |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Contrast Ratio | 700:1 (Typ.) [transmission] |
| Viewing Angle | 70/70/80/80 (Typ.)(CR≥10) | Outline dimension | 204×260.5×8.9(H×V×D)mm |
| Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal |
|
|
| work environment | Storage temperature: -40 ~ 85 °C Working temperature: -30 ~ 80 °C |
|
|
Horúce značky: 12.1 "Innolux G121XGE-L01 TFT LCD Modul, Čína, továreň, lacná, cena, prispôsobená, ponuka, okno smerujúca k LCD, 65 palcov obrazovky, obrazovka s plnou HD, outdoorová obrazovka LCD, Dodávateľ displeja 65inch, 500nity LCD, dodávka vonkajšie displeje, 2000NITS Outdoor Screen , LCD panel, LCD modul, displej s vysokým jasom.
