Min. objednať:1 Piece/Pieces
Model č.: G121X1-L04

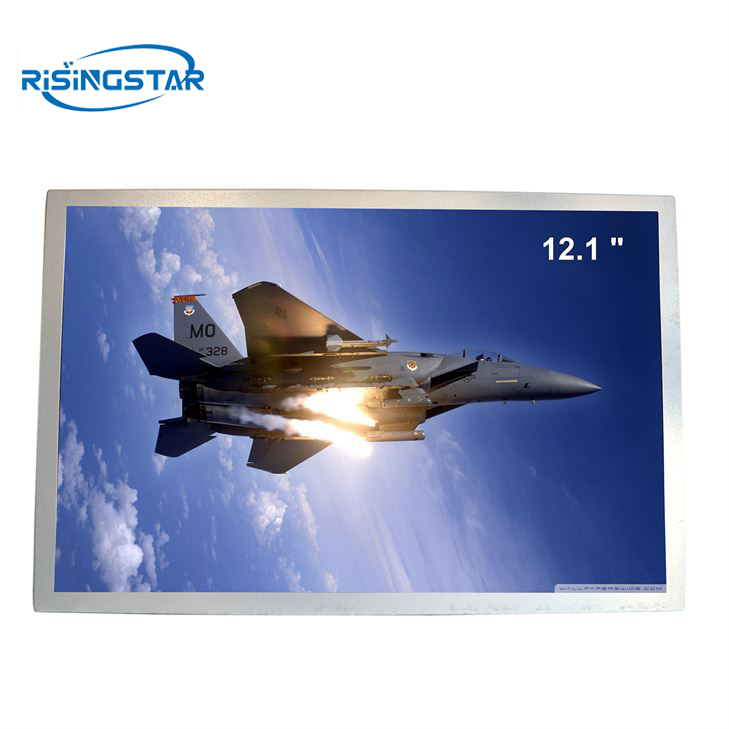

12,1 palca Innolux G121x1-L04 Viditeľný jas o slnečnom svetle TFT LCD Panel LCD.
| brand | Innolux | Model name | G121X1-L04 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 [XGA] 105PPI | Pixel configuration | RGB vertical bar |
| Display size | 245.76 × 184.32 mm (H×V) | Surface treatment | Fog surface, Hard coating (3H) |
| Visual size | 249.0 × 187.5 mm (H×V) | Contrast Ratio | 700:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 260.5 × 204 × 7.7 mm (H×V×D) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
|
|
| Signal interface | LVDS (1 ch, 6/8-bit) , terminal , 20 pins |
|
|
| work environment | Storage temperature: -40 ~ 80 °C Working temperature: -30 ~ 70 °C |
|
|
